How to draw the floor plan of a room
  1. Draw a simple sketch of your room.
  2. Mark the position of windows, doors and any other relevant architectural element. Also include the ceiling height and - when applicable - the position of drainage and heaters.

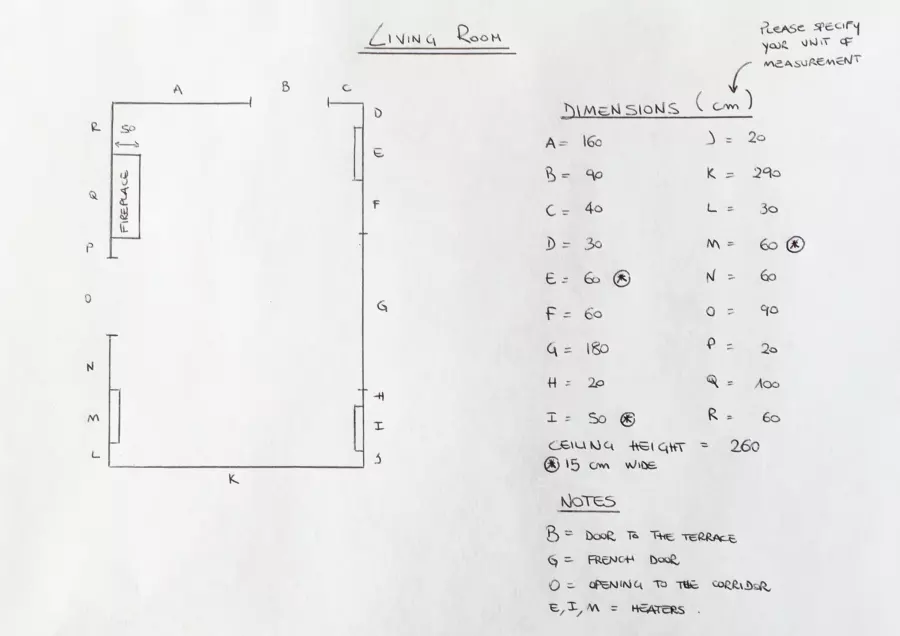

  3. Take measurements of all the elements above and mark them on the sketch. If you prefer you can proceed by segments, as shown below.
    Please note that the more accurate you can be in this phase the best the design will fit your space.
  4. Take a photo or scan your plan. Then attach it to the questionnaire and voilà, it’s all done!

How to draw the floor plan of a room.
